water bucket mold
YUCO Mold has many years of experience in bucket mold design and manufacturing, having designed over 1,000 plastic bucket molds for a wide range of industries. We also provide injection molding services to numerous companies in the bucket industry and are committed to providing only the highest quality products.
Plastic water bucket molds from China manufacturer
- YUCO specializes in producing high-quality water bucket molds. Our molds are durable, engineered for consistency and precision, and equipped with a sophisticated cooling system.
- We have a technical R&D center and have obtained numerous patents in the plastics field, including mold design, mold structure manufacturing, plastic part inventions, and improved plastic part functionality.
- To ensure you receive extremely short lead times, we've optimized our quoting system. Simply provide us with the precise specifications for your plastic bucket design, and we'll prepare it for you instantly.
- We offer competitive pricing to ensure you get the best value. Each mold is made from high-quality raw materials and tested before delivery.
- Our customer service is also top-notch, as we are committed to providing prompt and thorough communication with our customers.
water bucket mold specifications
| Specification category | Details |
|---|---|
| Mold base material | P20/718/738H/NAK80/S136 Hardened Steel (HRC 48-52) |
| Cavity configuration | Single/Multiple cavity options (up to 8 cavities) |
| Mold size range | 300×300×350mm to 1200×1000×800mm |
| Bucket capacity range | 1L to 30L customizable |
| Wall thickness | 1.8mm-3.5mm with ±0.05mm tolerance |
| Gate type | Hot runner system / Cold runner with sub-gate options |
| Cooling system | Conformal cooling channels with Baffle technology |
| Runner system | Balanced runner system with optimized gate location |
| Ejection system | Hydraulic / Pneumatic with synchronized ejector pins |
| Surface treatment | Mirror polishing (Ra 0.02μm)/Texturing/EDM finish |
| Steel hardness | Core and cavity: HRC 50-55; Other components: HRC 30-35 |
| Parting line precision | ≤0.02mm |
| Mold life expectancy | > 1,000,000 shots |
| Cycle time | 15-45 seconds (depending on bucket size) |
| Compatible materials | PP, PE, HDPE, PC, PS, ABS, PET, PVC |
| Quality control | CMM inspection, 3D scanning, Moldflow analysis certification |
| Design software | UG NX, CATIA V5, SolidWorks, Pro/E |
| Testing standards | ISO 9001, ISO 14001, SGS certification |
| Lead time | New mold: 25-35 days, Modification: 7-15 days |

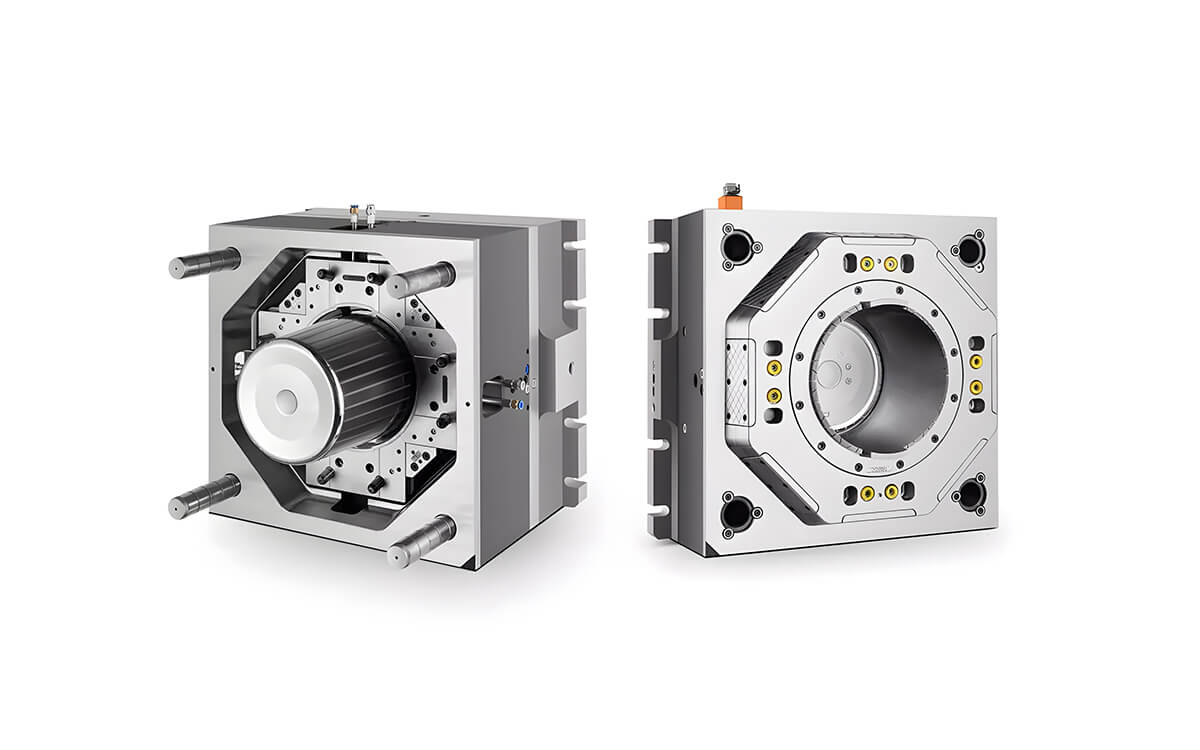

China bucket mold manufacturer
water bucket molding processing
Molds are a critical component of mass production for water buckets. Without molds, the production process would be slower and less efficient, resulting in higher costs for consumers.
Using injection molding, manufacturers can save time and resources compared to other manufacturing methods. Furthermore, injection molds create a uniform and precise design, ensuring that each bucket meets safety and durability standards.
How we support your water bucket mold business?
YUCO distinguishes itself from other plastic bucket manufacturers by offering a full range of services. From reliable plastic mold designers, mold and bucket design, to injection molding and surface treatment, we guarantee standardized bucket quality and on-time delivery, as all processes are completed in the same factory within the same fluid cycle.
design
Engineering
Machining
Assembly
Testing
bucket manufacturing
Mold Project Management
Our professional and systematic project management experience ensures that molds and engineering projects proceed in the most efficient manner.
Typically, once a project has entered production, a dedicated team will oversee the production phase, with project engineers assisting in evaluating and implementing any design modifications or improvements. This includes rapid prototyping, mold design, mold manufacturing, injection molding, value-added processes, and quality control.
Project engineers also coordinate order sources for custom parts and subcontractor tasks to ensure smooth quality, design, and shipping processes across all aspects of the project.
Quality control
YUCO controls the quality of key processes and manages project progress according to mold processing documents. We provide customers with weekly progress and quality reports.
- All raw materials are inspected upon arrival at the factory.
- All components, markings, and details are inspected during production.
- All packaging details are inspected during production.
- All products undergo final inspection before delivery.
We guarantee a mold life of 600,000 to 1,000,000 cycles. We guarantee high-precision mold processing results. If a component does not meet mold tolerance standards, we will rework or replace it with a new part. During the warranty period, if core mold components (such as the core, cavity, slide, ejector, etc.) are damaged by any unintentional damage, we will replace the part free of charge or refund your money.
How to choose a water bucket mold?
Plastic water bucket design
YUCO offers plastic bucket design and design optimization services. Upon ordering, we provide customers with complete 2D and 3D products and mold designs.
For product design, simply provide us with the type you require. If you already have a sample or drawing, we can redesign it to suit your needs. If you don’t have any samples or drawings, or even just an idea, we can design from scratch.
Regarding size, we can design molds for small 1-gallon buckets or large 5-gallon buckets. We are also fully capable of developing custom bucket molds for other sizes.
We also offer plastic buckets in a variety of shapes, including rectangular, square, rectangular, and round. Furthermore, our design team can incorporate other design elements, including buckets with lids and IML (in-mold labeling) buckets.
For design optimization, we analyze your bucket design and refine it to improve manufacturability. For example, reducing product weight is a common requirement. Reducing weight means lowering costs, but not at the expense of quality. Rest assured, our experts will find the perfect balance between weight and strength.
Concerned that your new product or drawing contains structural errors or needs further refinement? Don’t worry! We can provide 3D-printed samples for your close review and analysis before you order the mold. We can produce a detailed and precise prototype within 3 to 5 business days.
Plastic bucket mold design
Our injection mold designers will propose a suitable mold design based on your bucket design. Bucket mold designs are optimized for uniform wall thickness and can be modified until perfect.
YUCO provides product analysis and Moldflow reports, providing feedback to customers on issues identified on product drawings, such as thin-walled areas, sink marks, vent holes, and gate location. Once the design is complete, we will check mold strength, parting lines, cooling systems, interference areas, thin-walled areas, and more. We will then discuss operating methods, molding machine dimensions, and actual mold mechanism motion during production. Mold fabrication will only begin after our mold engineers have a detailed discussion with the customer regarding mold engineering.
- Core design: Our core designs utilize a one-piece solid mold base made of P20H or 718H steel, along with core inserts. These inserts can also be made of beryllium copper, reducing molding cycle times by at least 10-15%.
- Ejection method: Friction between the core and cavity during demolding must also be considered. Because the bucket’s walls are thin, friction can cause deformation during demolding. We can ensure smooth ejection of the bucket from the mold, enabling automated production!
- Parting surface selection: For bucket plastic parts, a beautiful appearance, free of blemishes and weld marks, and high surface quality are essential. When selecting a parting surface, consider the principles of parting surface selection. YUCO buckets have only one parting surface, resulting in a flash-free exterior and an aesthetically pleasing appearance.
water bucket mold manufacturing
A variety of machining techniques may be used in the manufacturing of bucket molds. One standard technique is milling, in which a rotating tool shapes and carves the mold material. Another option is electro-discharge machining (EDM), which uses electricity to remove minute portions of material from the mold surface.
Each manufacturing process has its advantages and limitations, so the specific machining technique will depend on the desired end result and budget constraints.
We utilize advanced mold manufacturing equipment and high-quality materials to ensure durable and efficient molds. Our CNC machines offer an accuracy of up to +/- 0.02 mm, ensuring your buckets are precisely dimensioned. Double-head EDM machines are not only more efficient but also suitable for machining large molds. High-speed engraving machines, while more expensive than standard engraving machines, ensure fast and precise mold processing.
Ultimately, all of these methods contribute to a durable and high-quality bucket mold.
High-quality raw materials
We pride ourselves on being a trusted plastic bucket manufacturer, using only high-quality raw materials. Our buckets are constructed from materials such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), or ABS to ensure durability and stability. The handles and lids are injection molded from easy-to-form PP and PE plastics.
All our materials are sourced from carefully vetted suppliers. We offer a wide selection, and if you require custom materials, we are readily available to source them for you (e.g., PP, PC, PS, PE, HDPE, POM, PA6, PA66, PA6+GF, ABS, TPU, TPE, PVC, SMC, BMC, etc.). Furthermore, because our staff is experienced in handling different types of plastics, you can be assured that the injection molding process for your buckets will proceed smoothly.
Mold Materials
During mold production, we select the appropriate steel grade based on your specific requirements.
The steel types we use include: P20, P20 (H), 718, 718 (H), 2738, 2738 (H), H13, NAK80, 2344, S136, 4Cr13, S55C, and C45#.
Steel suppliers are required to provide a steel quality guarantee and steel certificate. YUCO will inspect the steel before acceptance.
Mold spare parts procurement and control
We focus on sourcing qualified spare parts that meet customer requirements for standard part models, quality, and procurement time.
We maintain a separate archive of sold mold data so we can provide perfectly matched parts for any customer need. Whether core components or consumable parts, whether they are under warranty or not, we are happy to provide spare parts at any time.
YUCO Mold is capable of mass-producing water bucket molds.
YUCO has extensive experience in injection molds and plastic parts, having served as the sole plastic injection mold supplier for over 1,000 bucket molding projects.
We deliver exceptional results every time. We maximize mold capacity, minimize secondary operations, and reduce assembly time, resulting in an ideal combination of materials, molds, labor, and machinery for efficient and cost-effective production. Some of our customers have expanded into industries such as furniture, baby products, and warehousing.
If you're looking for a reliable partner for mass production of plastic bucket molds, YC Mold is your best choice. Contact us today to discuss your mold needs and receive a quote.
