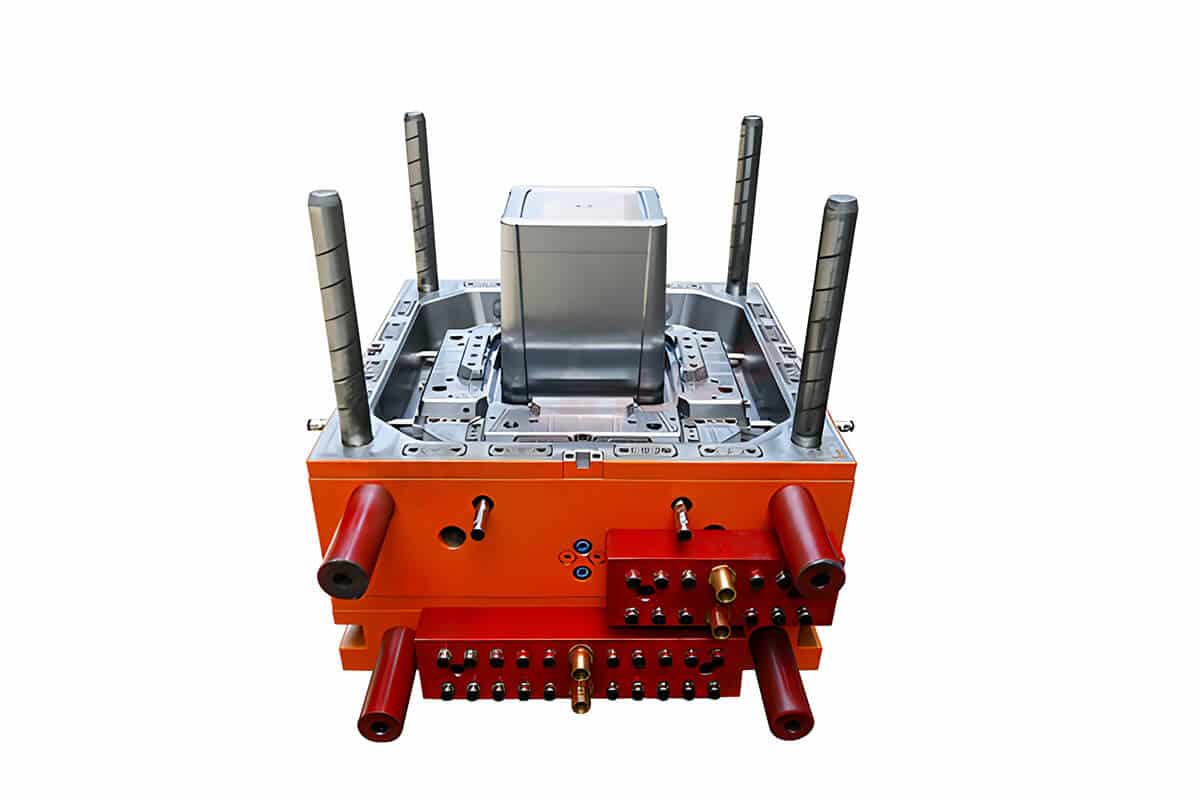

plastic square bucket mold
At YUCO Mold, we specialize in designing and manufacturing high-precision plastic square bucket molds that meet the rigorous demands of modern production environments. Whether you're producing industrial containers, food-grade pails, paint buckets, or chemical storage solutions, our square bucket molds deliver consistent quality, superior dimensional accuracy, and long-lasting durability — cycle after cycle.
Plastic square bucket mold | YUCO Mold

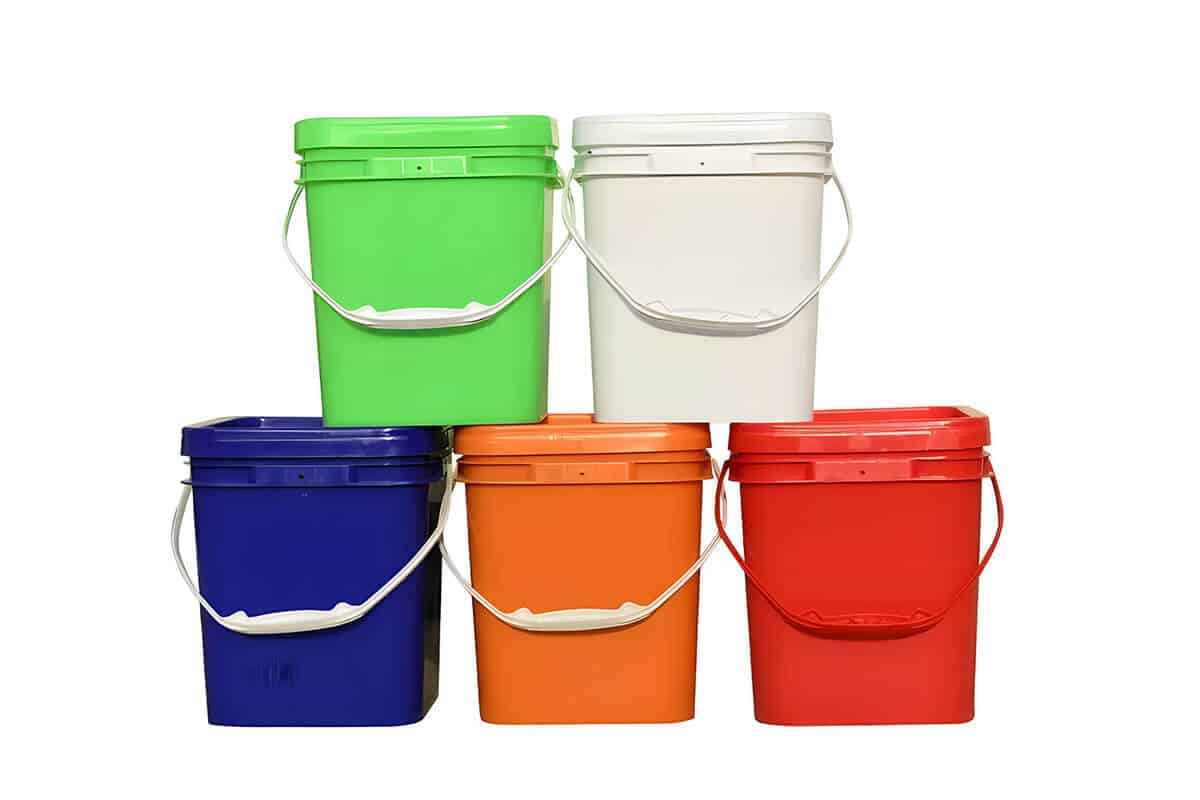

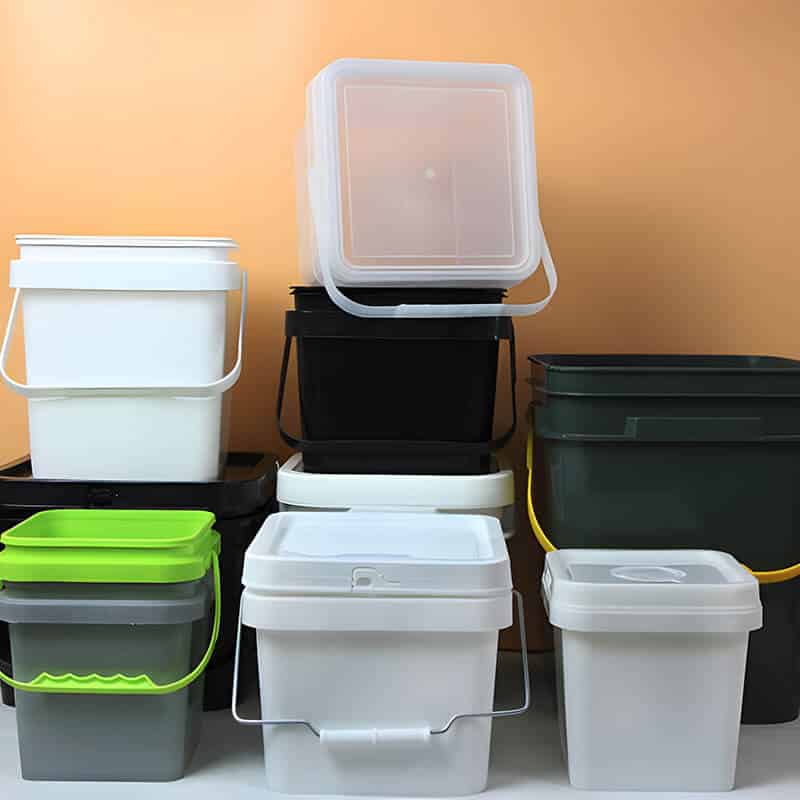

Square buckets offer a distinct advantage over round counterparts: better space efficiency, easier stacking, and optimized storage logistics. As demand for square-profile containers grows across industries — from food packaging to construction materials — the quality of your mold directly determines the quality of your product.
- High-precision cavity & core machining: Our molds are machined using CNC precision equipment with tolerances as tight as ±0.01mm, ensuring every bucket produced meets exact dimensional specifications.
- Optimized cooling system design: We engineer conformal or straight-line cooling channels tailored to square-bucket geometry, reducing cycle time by 20–30% while maintaining consistent wall thickness and minimizing warpage.
- Superior steel selection: We use premium-grade steels, including P20, 718H, S136, and H13, depending on your production volume and material requirements.
- Advanced ejection systems: Our square bucket molds incorporate stripper plate or ejector pin systems engineered for clean, efficient part release — reducing deformation risk and maintaining the integrity of every bucket.
Square bucket mold specifications
| Parameter | Details |
|---|---|
| Product | Plastic square bucket mold |
| Mold base material | Lkm / hasco standard / custom |
| Cavity steel | P20, 718h, S136, H13 |
| Cavity & core hardness | Hrc 28–52 (based on steel grade) |
| NO. Of cavities | 1, 2, 4, 6, or custom |
| Applicable materials | Pp, hdpe, ldpe, abs, ps |
| Bucket capacity range | 1l – 30l (custom sizes available) |
| Mold lifespan | 500,000 – 1,500,000+ shots |
| Runner system | Cold runner / hot runner (optional) |
| Gate type | Side gate, sub-gate, or hot tip |
| Ejection system | Stripper plate / ejector pin |
| Cooling system | Straight / conformal cooling channels |
| Surface finish | Polished / textured / custom |
| Lead time | 30–50 days (based on complexity) |
| Mold standard | Dme / hasco / lkm / custom |
| Export markets | Worldwide |
China bucket mold manufacturer
Plastic square bucket mold processing
We follow a rigorous, stage-by-stage production workflow to ensure that every mold we deliver meets the highest standards.
01 DFM analysis
Our experienced engineers conduct a thorough Design for Manufacturability (DFM) analysis before tooling begins. We review your product drawings, identify potential design risks, and propose optimized solutions for wall thickness, draft angles, parting lines, and gate locations.

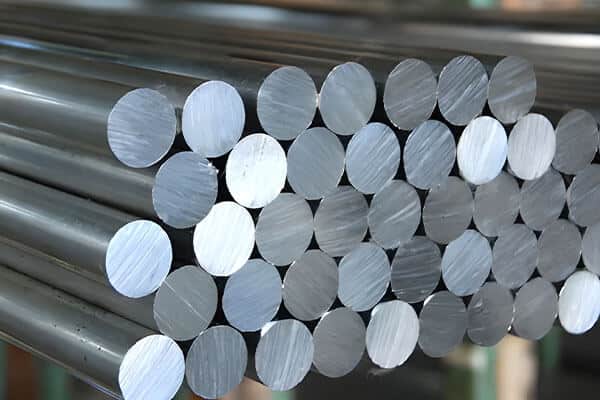

02 Steel procurement & inspection
Only certified, traceable steel is used. All incoming material is hardness-tested and composition-verified to ensure consistency throughout the mold's service life.

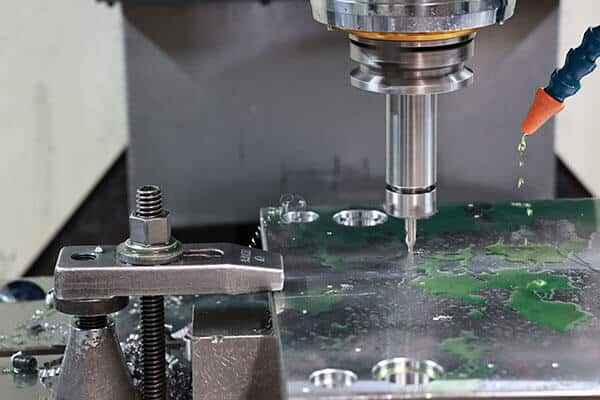

03 CNC roughing & semi-finishing
Our high-speed CNC machining centers perform roughing and semi-finishing operations with micron-level accuracy, establishing the base geometry of all cavity, core, and mold base components.

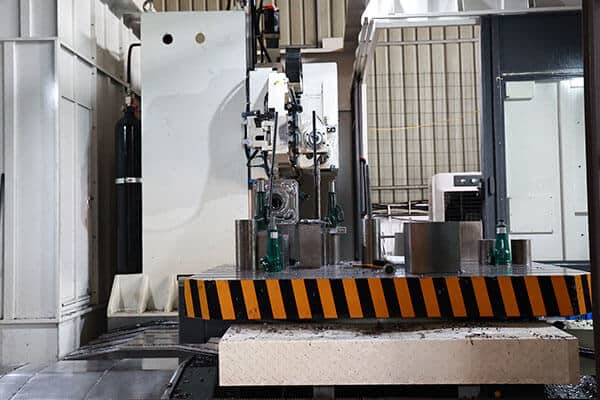

04 Heat treatment
Cavity and core steels undergo vacuum heat treatment to achieve the required hardness and relieve internal stress — critical for long-term dimensional stability.

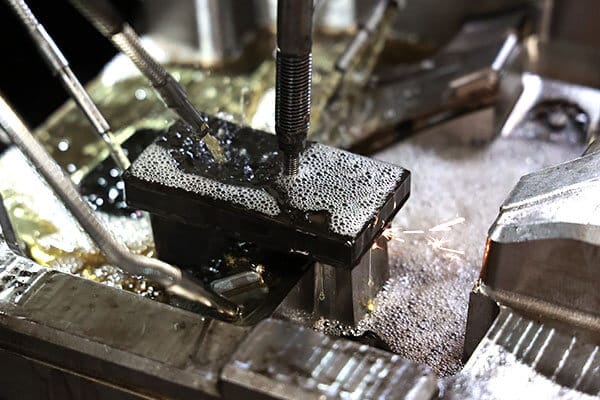

05 CNC finishing & EDM processing
Final cavity profiles are achieved through high-precision CNC finishing and EDM (Electrical Discharge Machining) for complex geometries, sharp corners, and fine details that define the bucket's appearance and function.

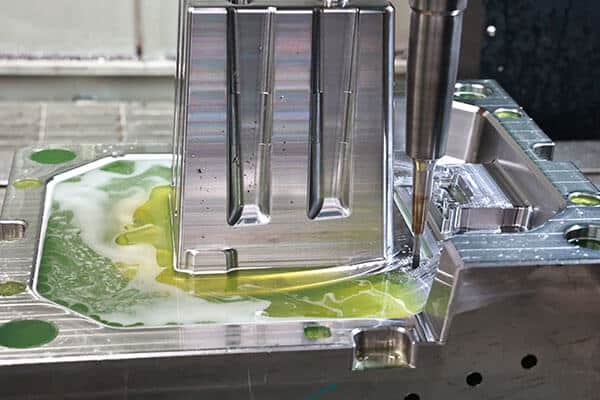

06 Surface polishing & texturing
Depending on product requirements, cavity surfaces are hand-polished or textured to the specified surface finish (SPI standards available), ensuring cosmetically acceptable and functionally optimized parts.
07 Mold assembly & fitting
All mold components — core, cavity, slides, lifters, ejector system, cooling circuits, and hot runner (if applicable) — are precisely assembled and fitted by our senior toolmakers.

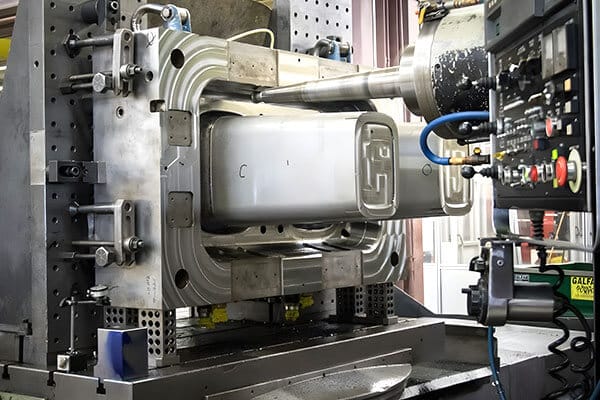

08 Mold trial & validation (T1 / T2)
The mold is mounted on our injection molding machines for systematic trial runs. We document: 1: Dimensional inspection reports 2: First-article samples 3: Cycle time data 4: Visual quality assessment Adjustments are made until the mold consistently produces on-spec parts.
Why choose YUCO plastic square bucket mold
Your product starts with the right mold. At YUCO Mold, we combine precision engineering, premium materials, and decades of hands-on experience to deliver plastic square bucket molds that perform reliably, reduce your cost per part, and scale with your production goals.
In-house quality control
15+ Years of experience
Customization
On-time delivery
Transparent communication
Lifetime technical support
Frequently asked questions
What is the typical lead time for a plastic square bucket mold?
Lead time is typically 30 to 50 working days, depending on mold complexity, number of cavities, and steel availability. We will provide a confirmed timeline after reviewing your product drawings.
Can you manufacture molds for large square buckets (20L or 30L)?
Yes. YUCO Mold has extensive experience producing molds for large-format square buckets up to 30L and beyond. Our engineering team will assess wall thickness, cooling layout, and ejection requirements to ensure structural integrity.
Which plastic material is best for square buckets?
PP (Polypropylene) is the most commonly used material for square buckets due to its excellent chemical resistance, flexibility, and food-grade compliance. HDPE is preferred for heavy-duty industrial applications. We can advise on material selection based on your end-use requirements.
Do you provide mold design services if I only have a physical sample?
Absolutely. If you provide a physical sample or basic dimensions, our engineers can perform reverse engineering and develop complete 3D design files before tooling begins.
Can I visit your factory before placing an order?
Yes, factory visits are welcome. Alternatively, we can arrange a live video factory tour to show you our facilities, equipment, and ongoing projects.
What file formats do you accept for mold design?
We accept STEP, IGES, SolidWorks (.sldprt/.sldasm), AutoCAD (.dwg/.dxf), and PDF formats. Our engineering team can work from most standard CAD formats.
Why choose YUCO molds for bucket molds?
YUCO Mold specializes in custom plastic bucket molds designed for high-volume, high-precision production. Whether you’re manufacturing food-grade pails, paint buckets, or industrial containers, our molds are engineered with superior steel, optimized cooling systems, and rigorous quality control — ensuring consistent output, reduced cycle times, and a longer mold lifespan.
